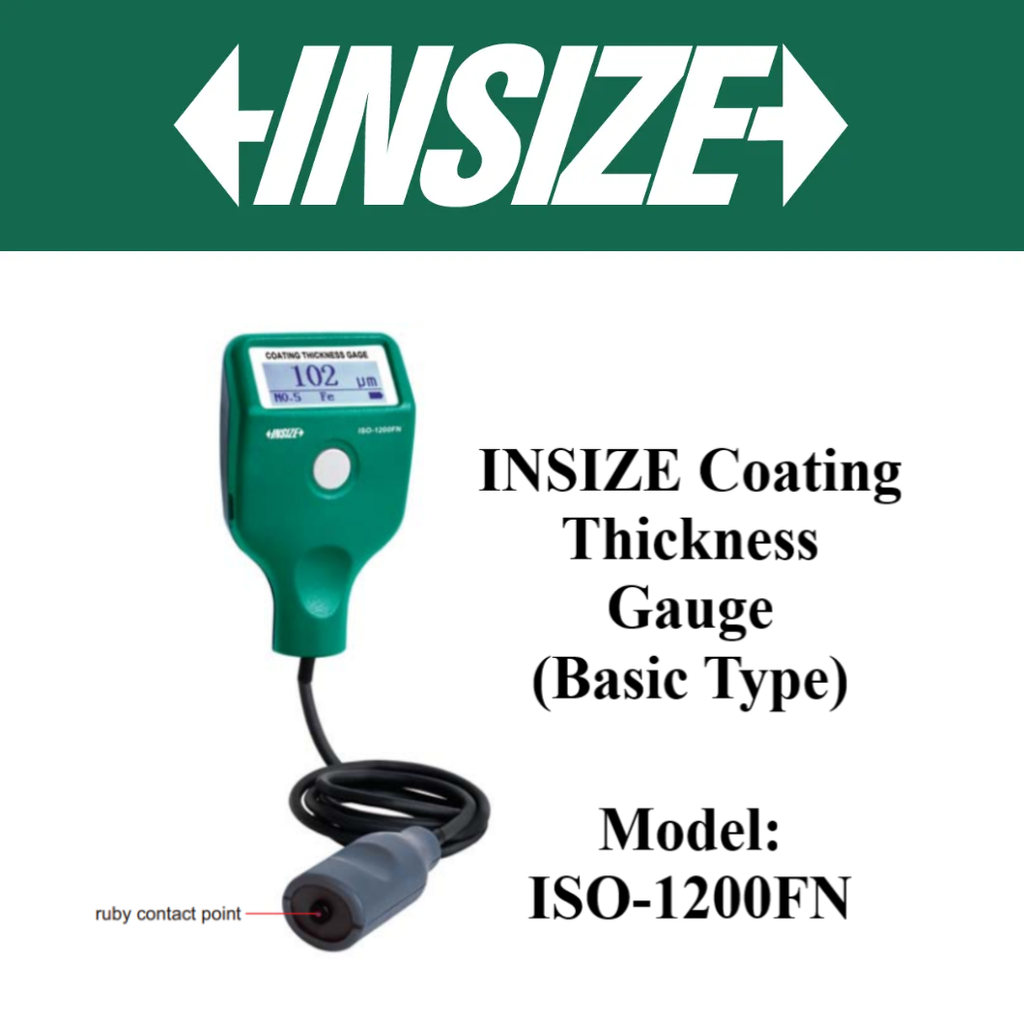

INSIZE Coating Thickness Gage / Coating Thickness Gauge (Basic Type) (Model: ISO-1200FN)

RM 900.00
INSIZE Coating Thickness Gage / Coating Thickness Gauge (Basic Type) (Model: ISO-1200FN) Ratings: 0 - 0 votes
- +
icon-bag Add to Cart
Home

Product Details:

  • Probe is suitable for both magnetic & non-magnetic metal substrates
  • Can measure the thickness of non-magnetic coating and non-metallic coating on magnetic metal substrate
  • Substrate: iron, steel, magnetic stainless steel (not for non-magnetic stainless steel)
  • Coating: zinc, aluminum, copper, chrome, tin, plastic, powder, paint (not for nickel)
  • Can measure the thickness of non-conductive coating on non-magnetic metal substrate
  • Substrate: copper, aluminum, zinc, non-magnetic stainless steel
  • Coating: plastic, powder, paint, anodizing (not for chrome and zinc plating)
  • 3 measuring modes: Fe, NFe, Fe/NFe
  • Store 9 measuring records
  • Small and portable, easy for operation

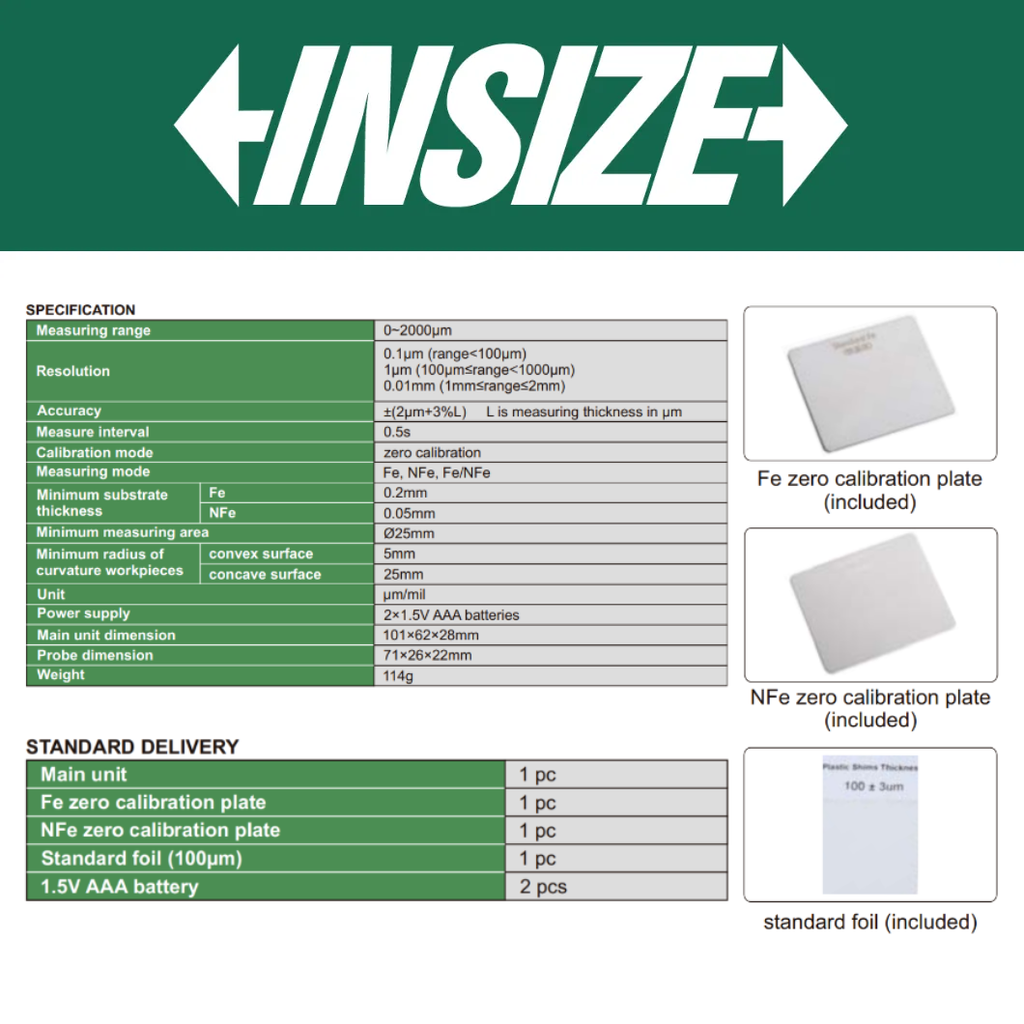

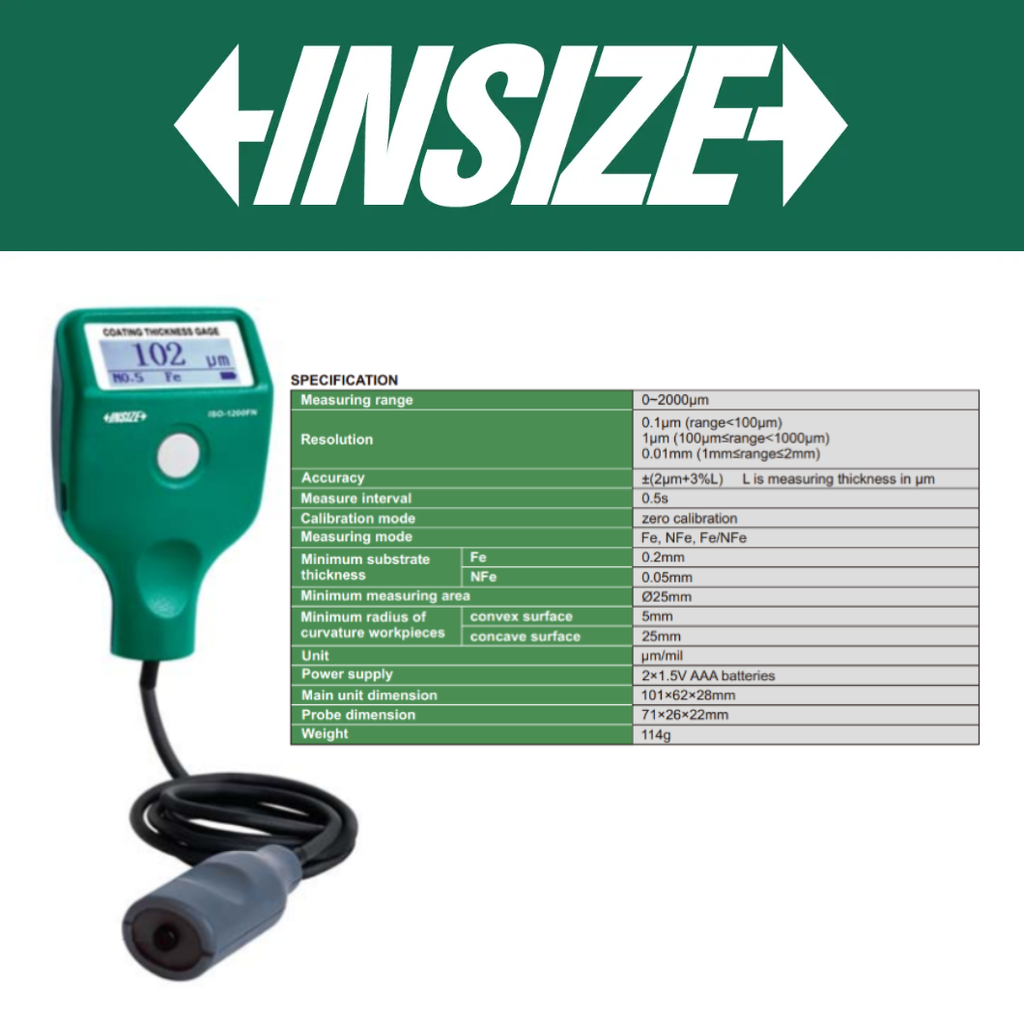

Specifications:

  • Model: ISO-1200FN
  • Measuring Range: 0-2000­µm
  • Resolution: 0.1µm (range <100µm), 1µm (100µm ≤ range < 1000µm), 0.01mm (1mm ≤ range ≤ 2mm)
  • Accuracy: ±(2µm+3%L)  L is measuring thickness in µm
  • Measure Interval: 0.5s
  • Calibration Mode: Zero Calibration
  • Measuring Mode: Fe, NFe, Fe/NFe
