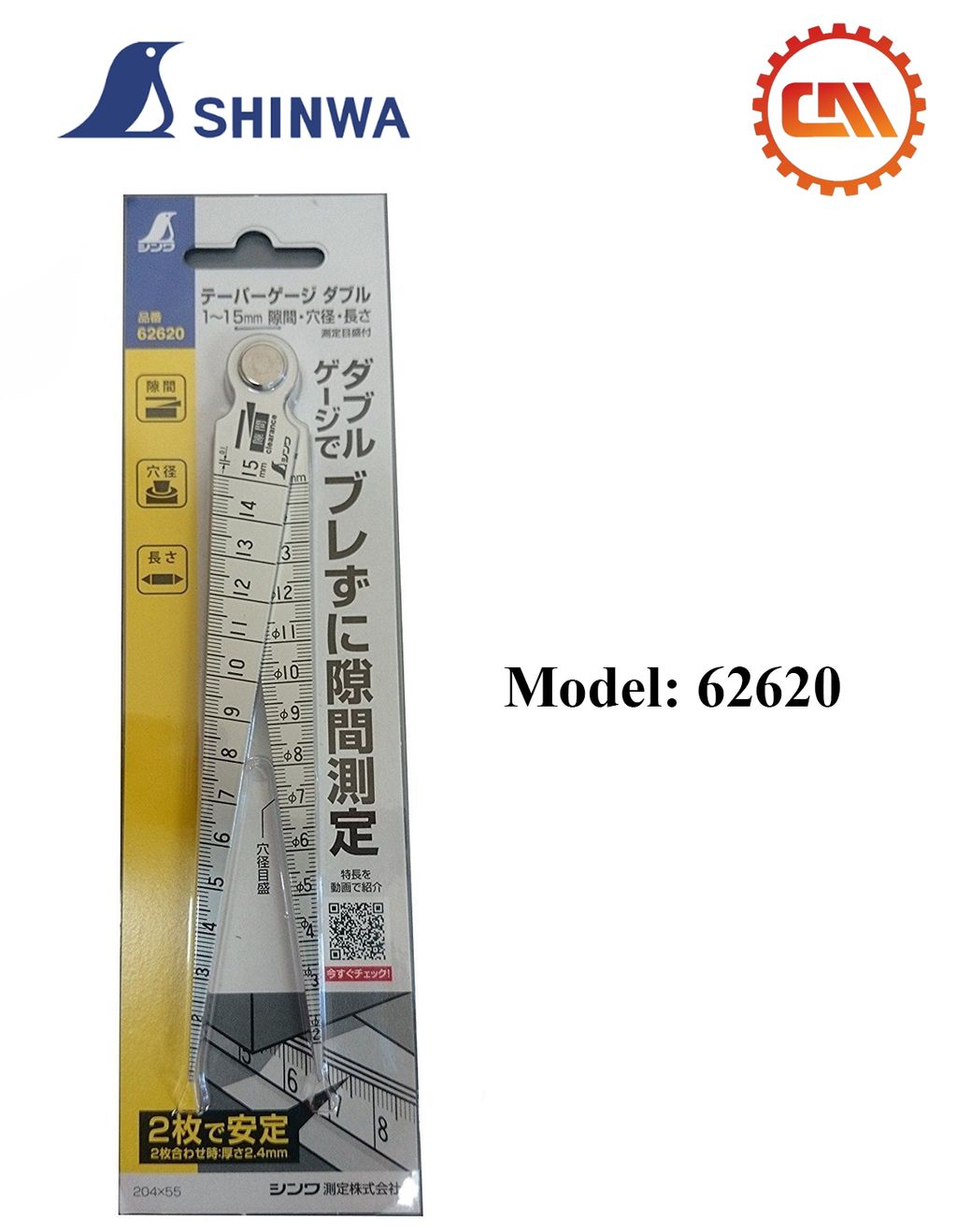

- Gap clearance gauge with 2 blades.
- Features

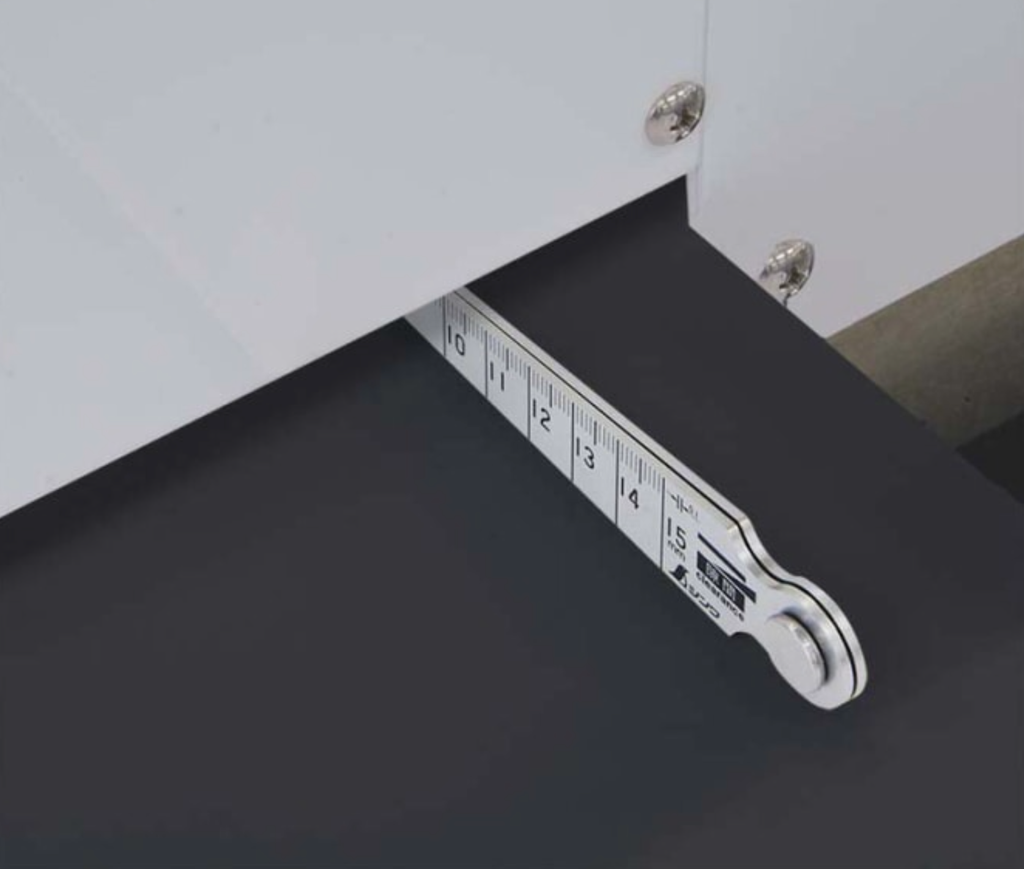

- The thickness when the 2 blades are aligned together enables stable gap clearance measurement.
- With graduations (for gap clearance measurements) that can be easily read simply by aligning along one side of the gap.
- The hole diameter measurement graduations already compensate for error in the sheet thickness, making tedious conversion work unnecessary.
- Applications
- For measuring gaps, hole diameters and length.

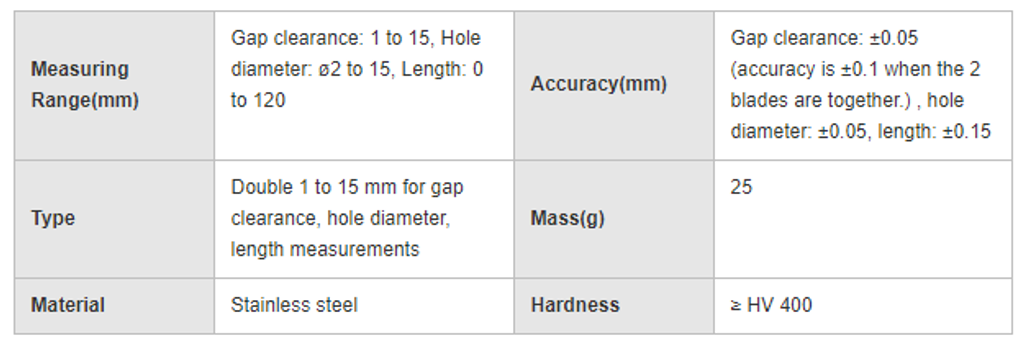

- Taper Gauge Double 1-15mm (For Gap Clearance, Hole Diameter, Length Measurement) Specification
- Accuracy - Gap clearance: ±0.05 mm
- *Accuracy is ±0.1 mm when the 2 blades are together.
- Accuracy - Hole diameter: ±0.05 mm
- Accuracy - Length: ±0.15 mm
- Measurement range - Gap clearance: 1 to 15 mm
- Measurement range - Hole diameter: ø2 to 15 mm
- Measurement range - Length: 0 to 120 mm
- Materials: Stainless steel
- Main body size: 144 × 16.3 × 5.5 mm
- Product mass: 25 g
