Product Description:
- Type: Tubular Inside Micrometer.
- Application: Measuring internal dimensions like bore IDs, cylinder IDs, large housings.
- Graduation: Typically 0.01mm or 0.001 inches.
- Measuring Faces: Carbide-tipped for wear resistance and accuracy.
- Design: Tubular frame for rigidity and lighter weight, with a micrometer head.
- Range: Available in various models (e.g., 3222-300, 3222-1000, 3222-20) covering large ranges (e.g., 50-300mm, 2-20 inches).
- Components: Includes extension rods to achieve different measurement lengths and setting standards (like ring gauges) for calibration.

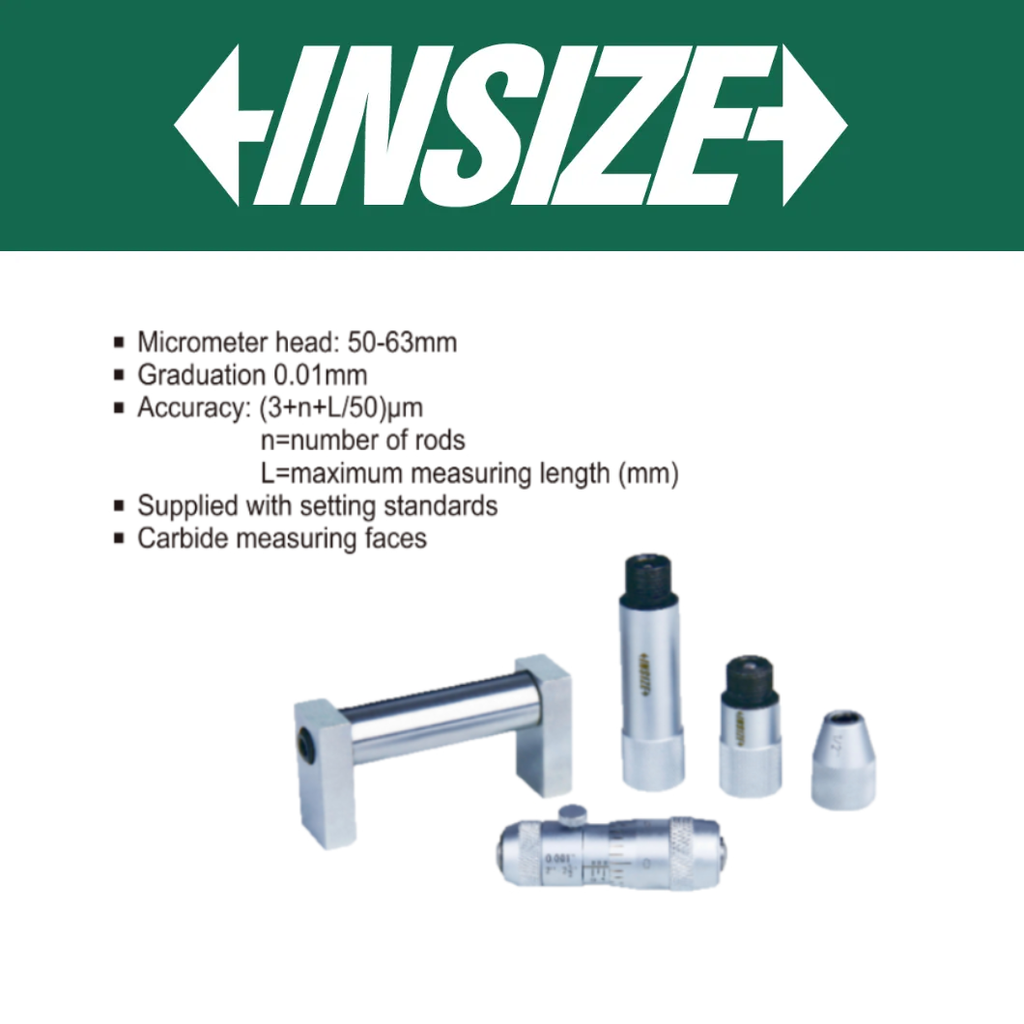

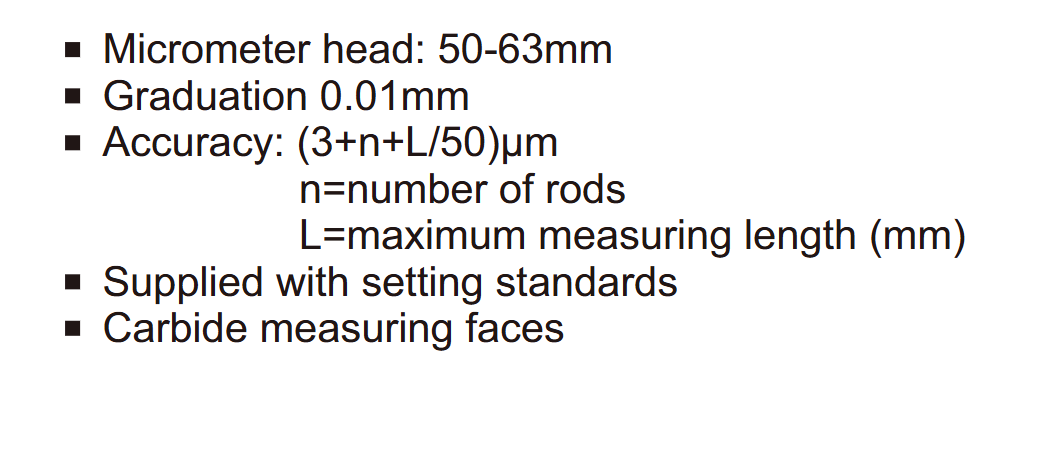

- Accuracy: Varies by model, often specified as (3 + n + L/50)µm for metric, where 'n' is the number of rods and 'L' is the max length
Product Specification:
a) 3222-63
| Type of Product | Tubular Inside Micrometer |
| Range (mm) | 50-63 mm |
| Resolution (mm) | 0.01 mm |
| Travel Of Micrometer Head (mm) | 13 mm |
b) 3222-150
| Type of Product | Tubular Inside Micrometer |
| Range (mm) | 50-150 mm |
| Resolution (mm) | 0.01 mm |
| Travel Of Micrometer Head (mm) | 13 mm |

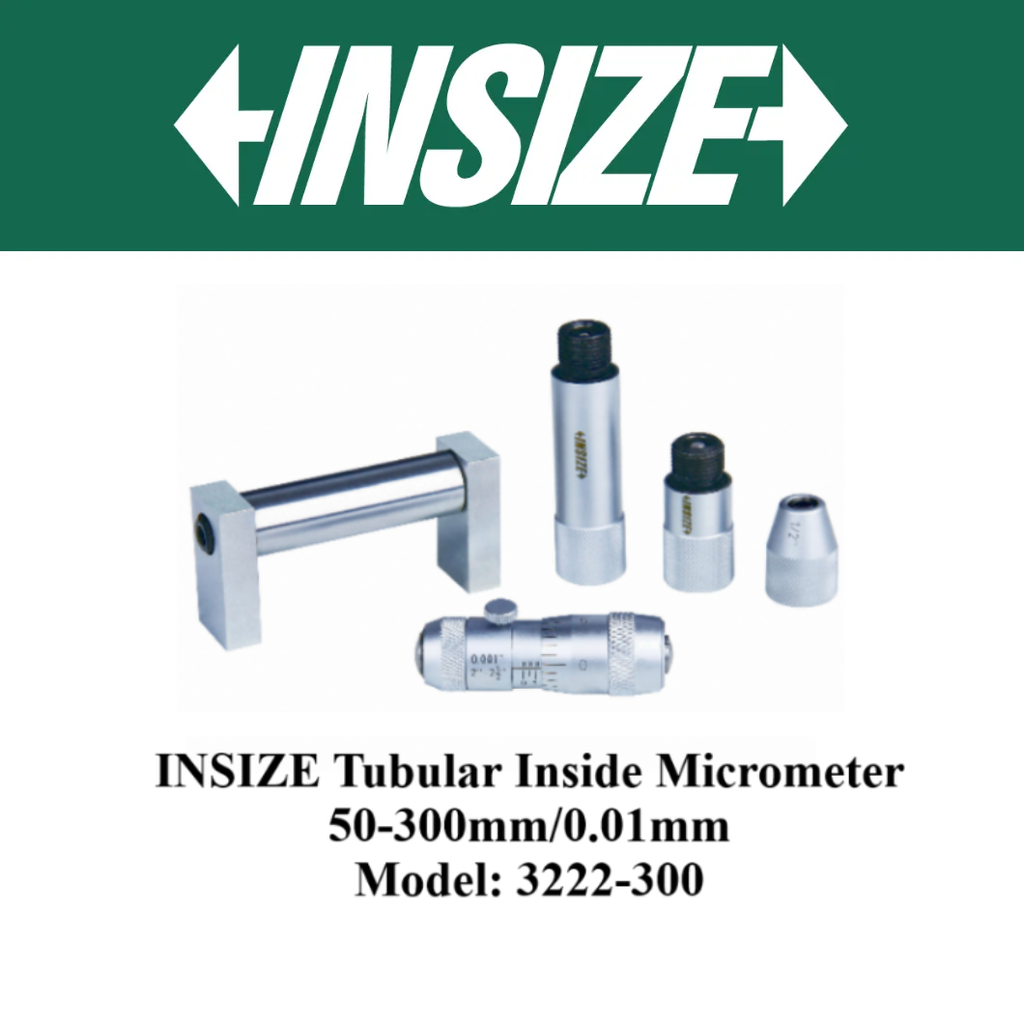

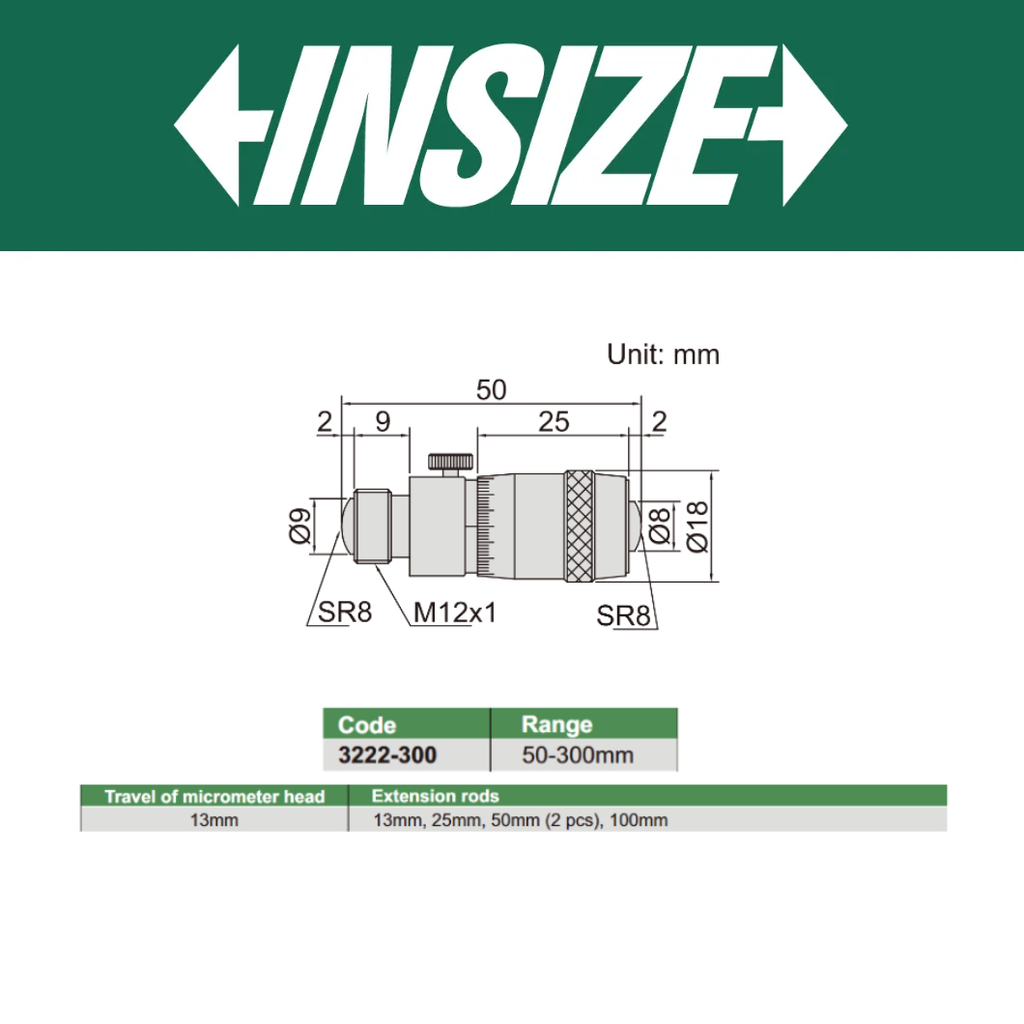

c) 3222-300
| Type of Product | Tubular Inside Micrometer |
| Range (mm) | 50-300 mm |
| Resolution (mm) | 0.01 mm |
| Travel Of Micrometer Head (mm) | 13 mm |
