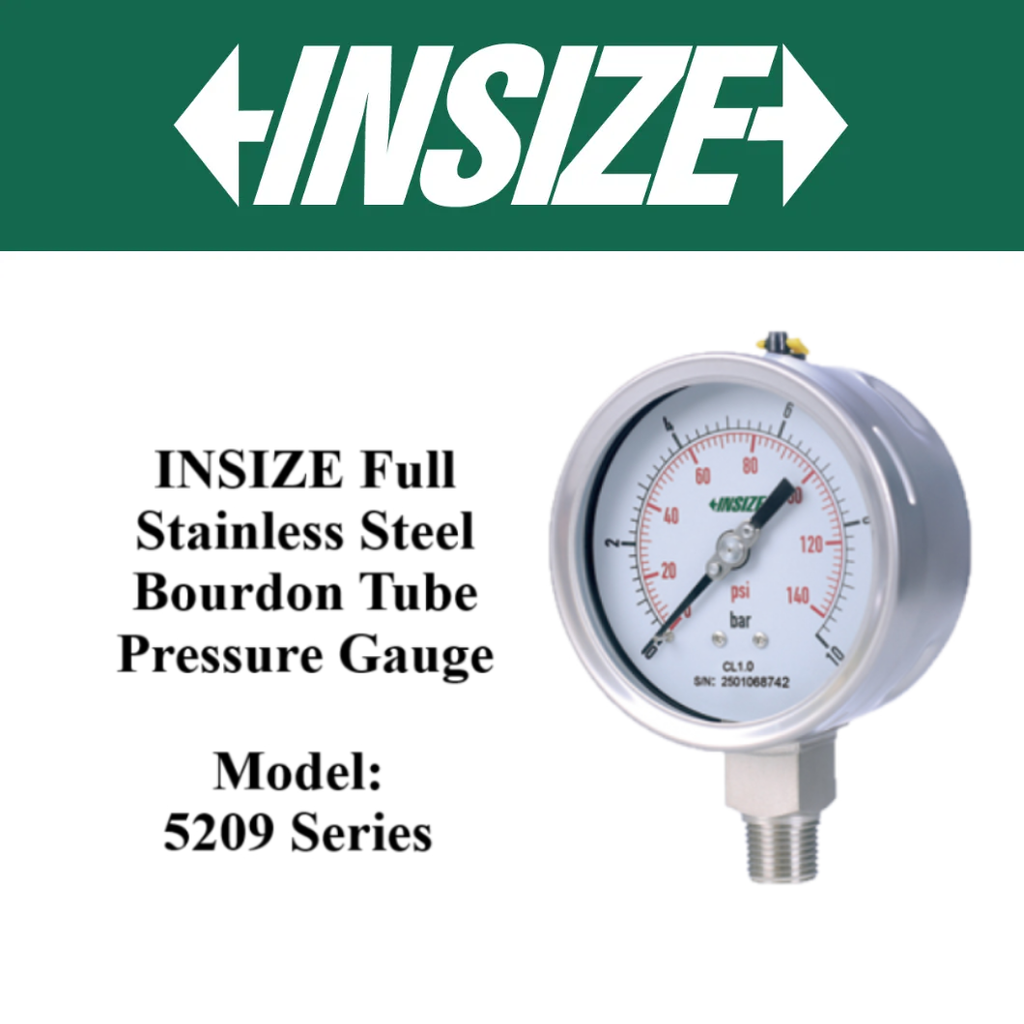

INSIZE Full Stainless Steel Bourdon Tube Pressure Gauge - 5209 Series

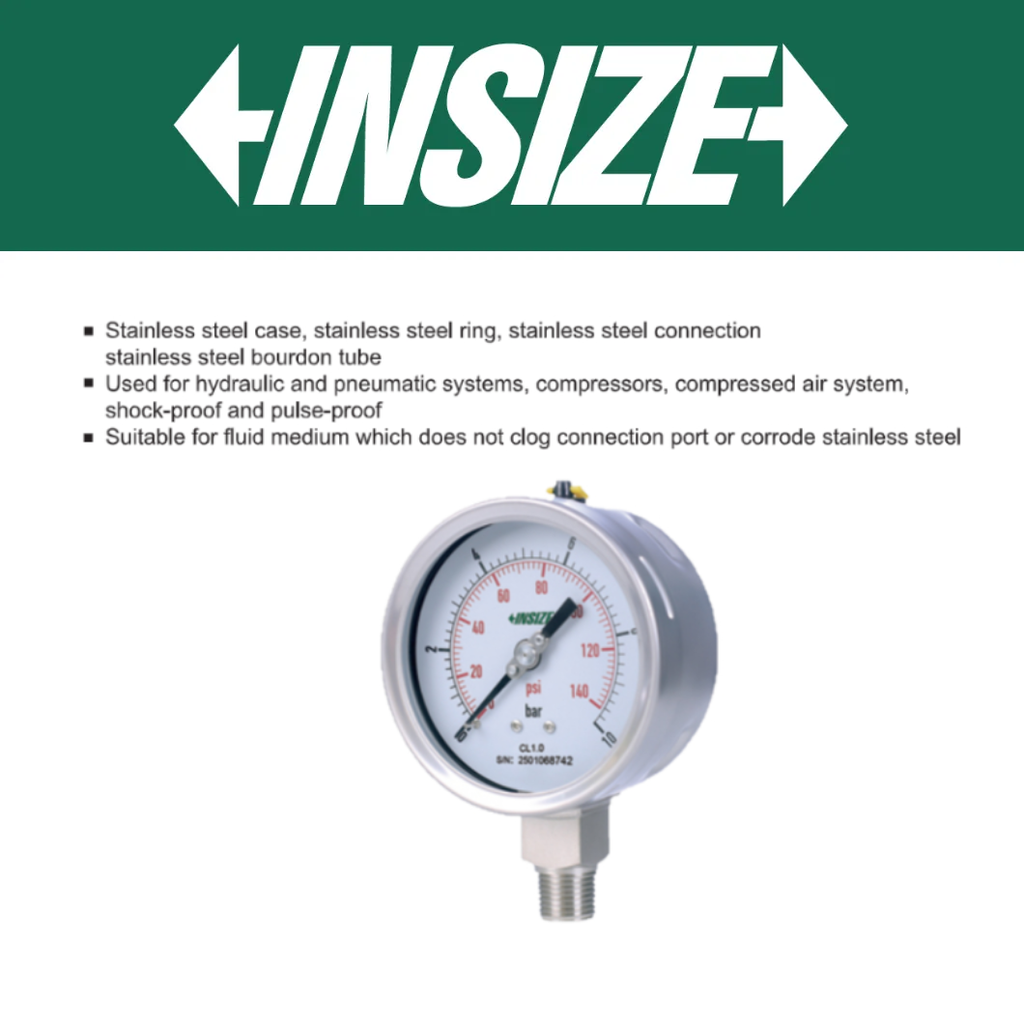

Product Description:

• Stainless steel case, stainless steel ring, stainless steel connection & stainless steel bourdon tube.
• Used for hydraulic and pneumatic systems, compressors, compressed air system, shock-proof and pulse-proof.
• Suitable for fluid medium which does not clog connection port or corrode stainless steel.

Product Specification:

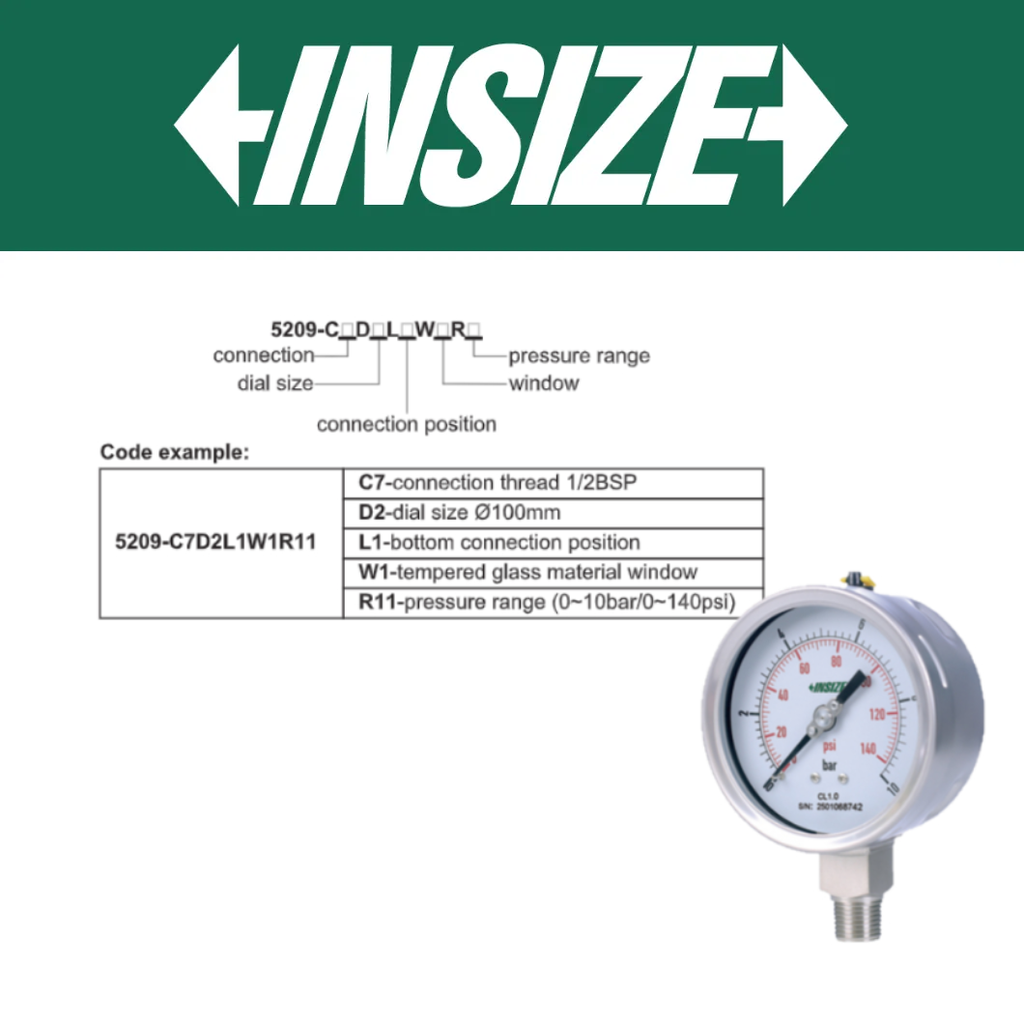

1. Model :5209-C9-D2-L1-W2-R3

• Pressure Range:  -1-4bar / -30-0inHg-60psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)


2. Model: 5209-C9-D2-L1-W2-R5

• Pressure Range: 0-1bar/ 0-15psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

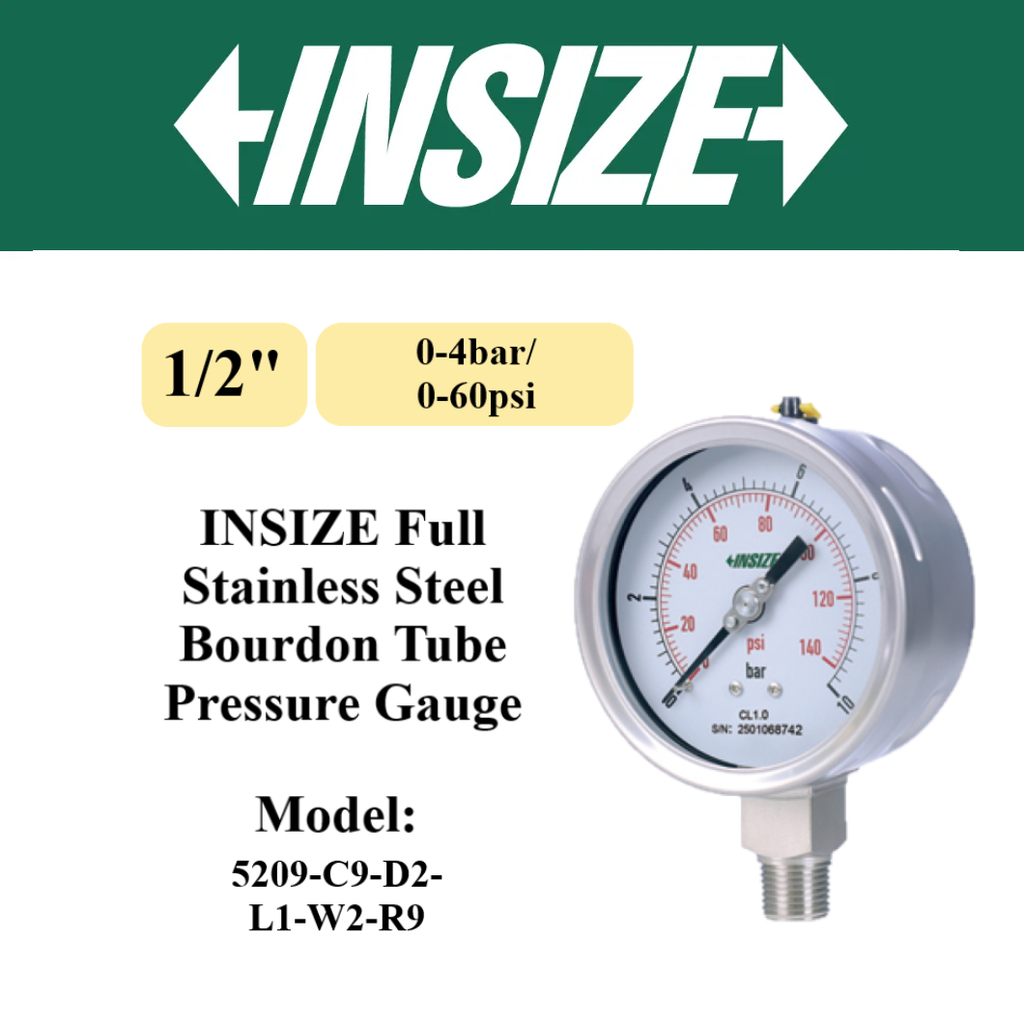

3. Model: 5209-C9-D2-L1-W2-R9

• Pressure Range: 0-4bar/ 0-60psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

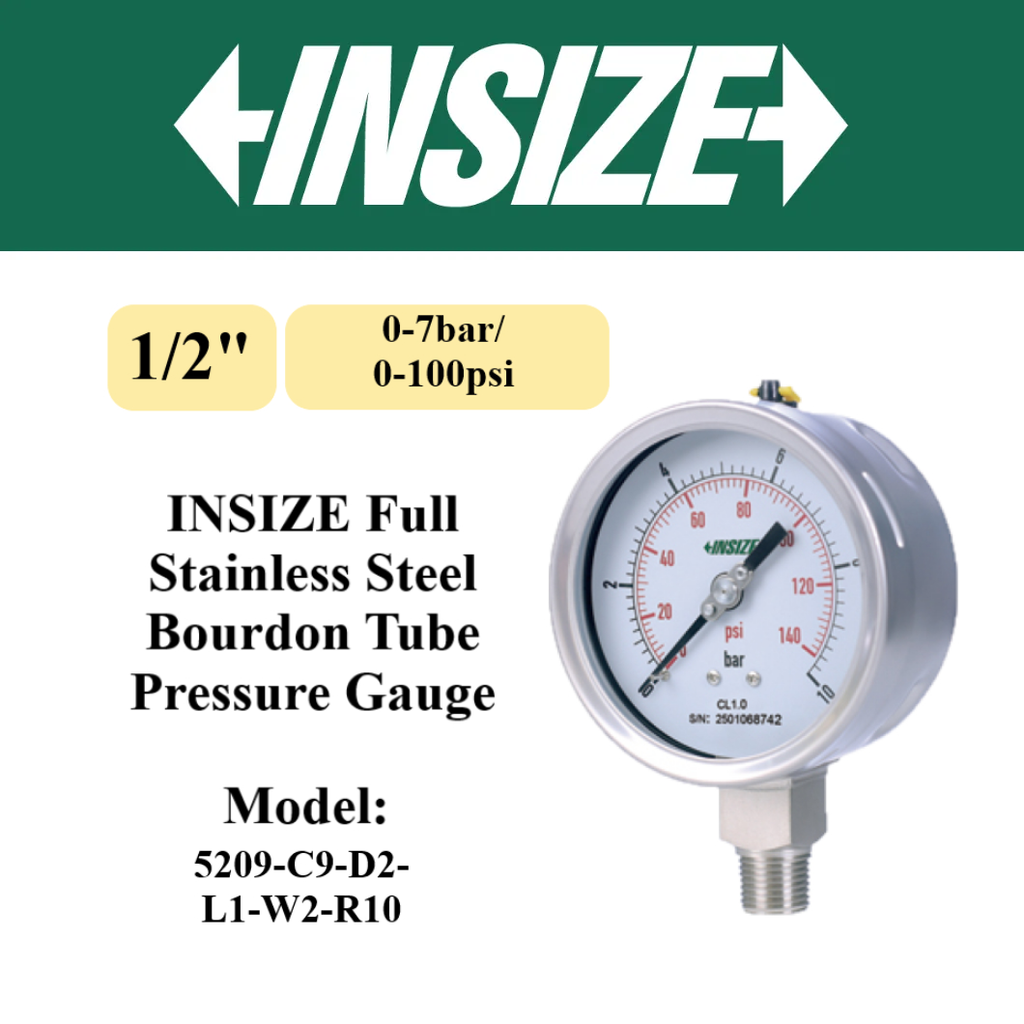

4. Model: 5209-C9-D2-L1-W2-R10

• Pressure Range: 0-7bar/ 0-100psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

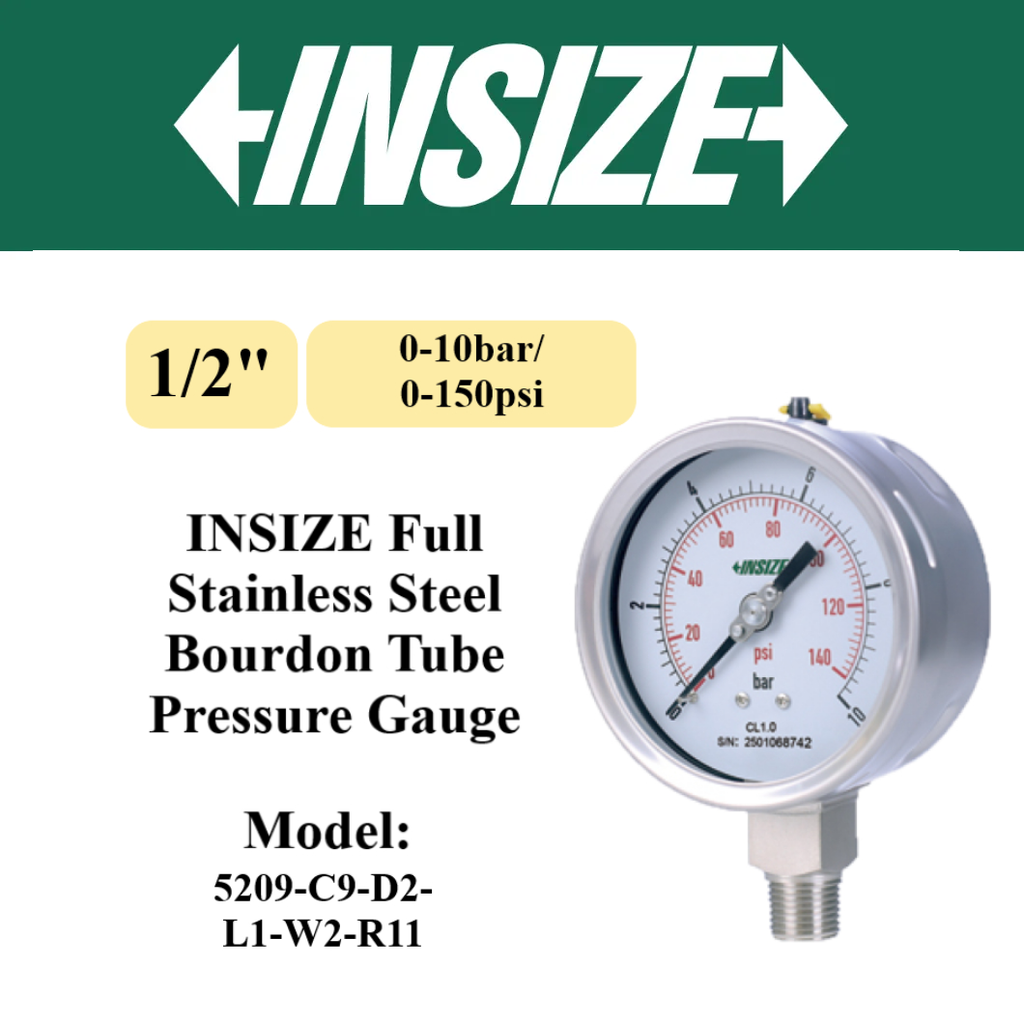

5. Model: 5209-C9-D2-L1-W2-R11

• Pressure Range: 0-10bar/ 0-150psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

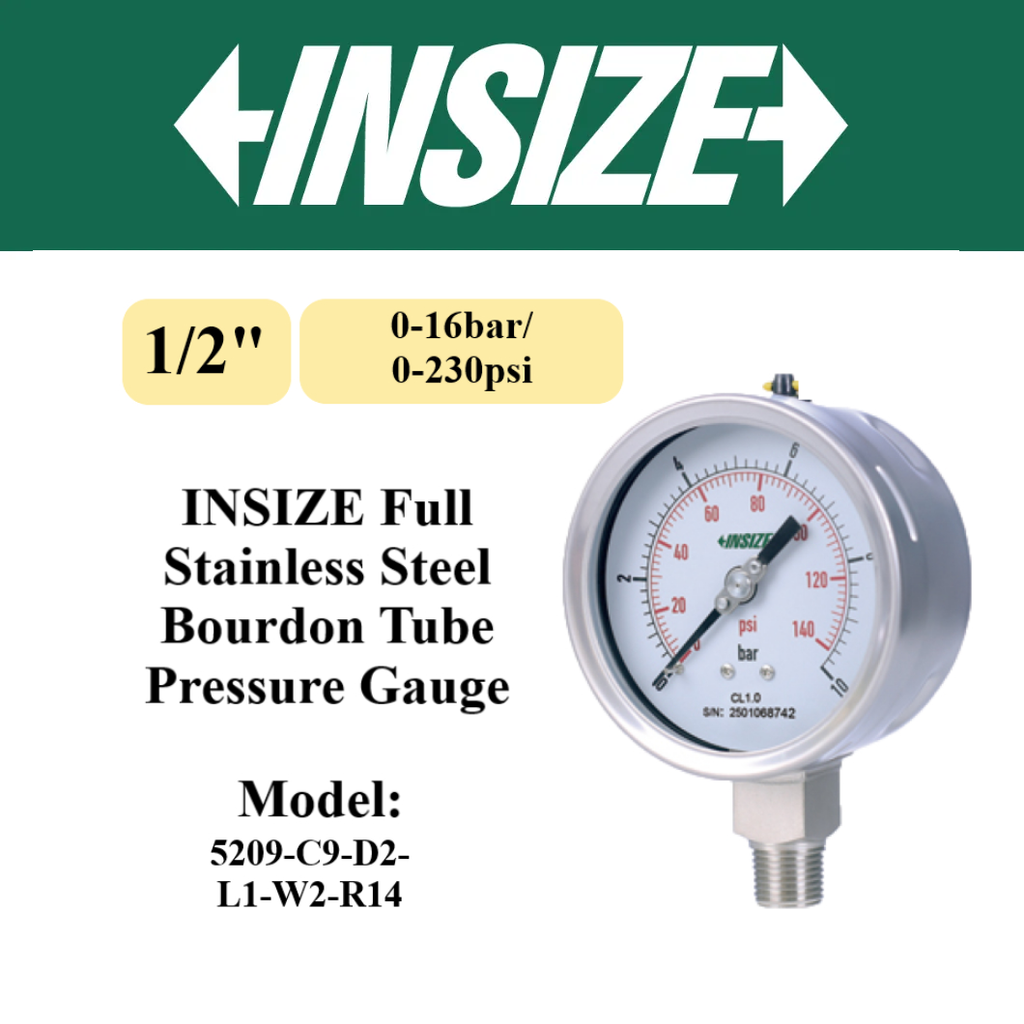

6. Model: 5209-C9-D2-L1-W2-R14

• Pressure Range: 0-16bar/ 0-230psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)


 7. Model: 5209-C9-D2-L1-W2-R15

• Pressure Range: 0-20bar/ 0-300psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

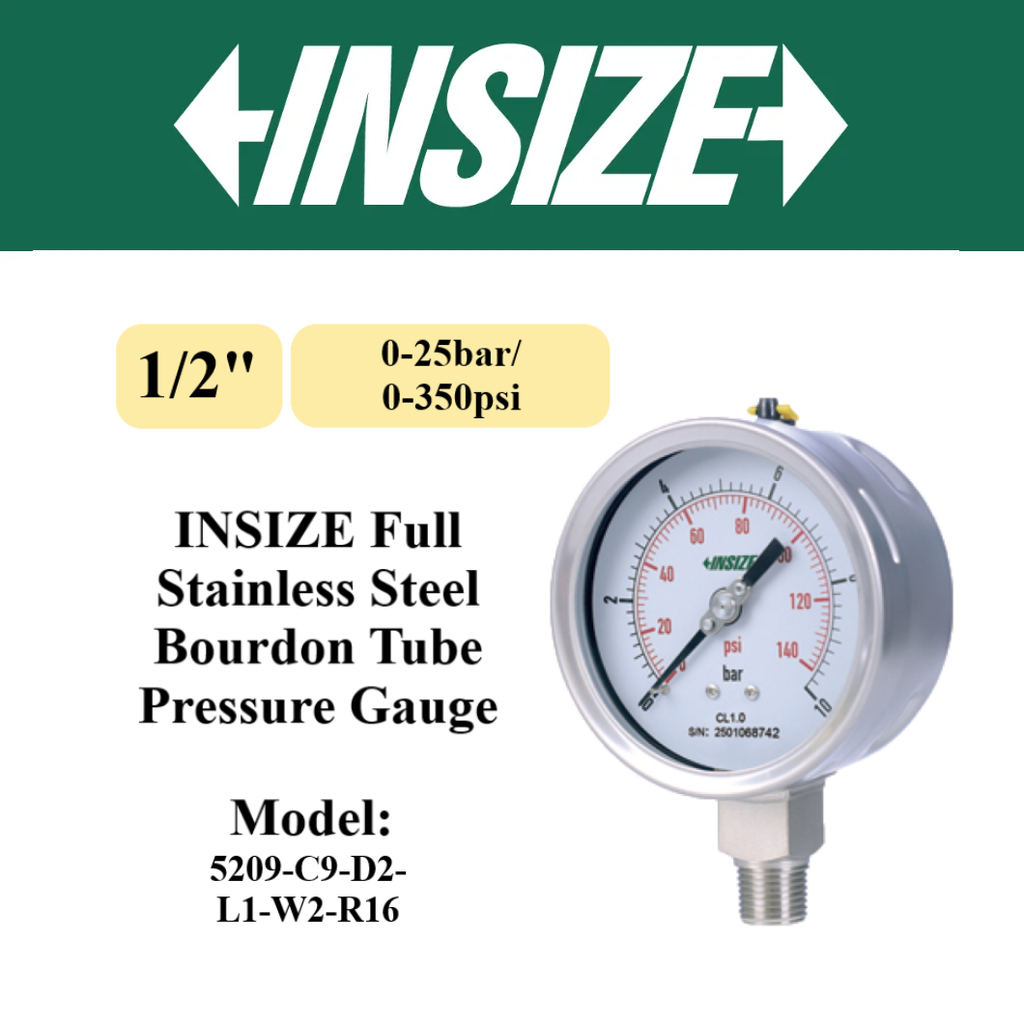

8. Model: 5209-C9-D2-L1-W2-R16

• Pressure Range: 0-25bar/ 0-350psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

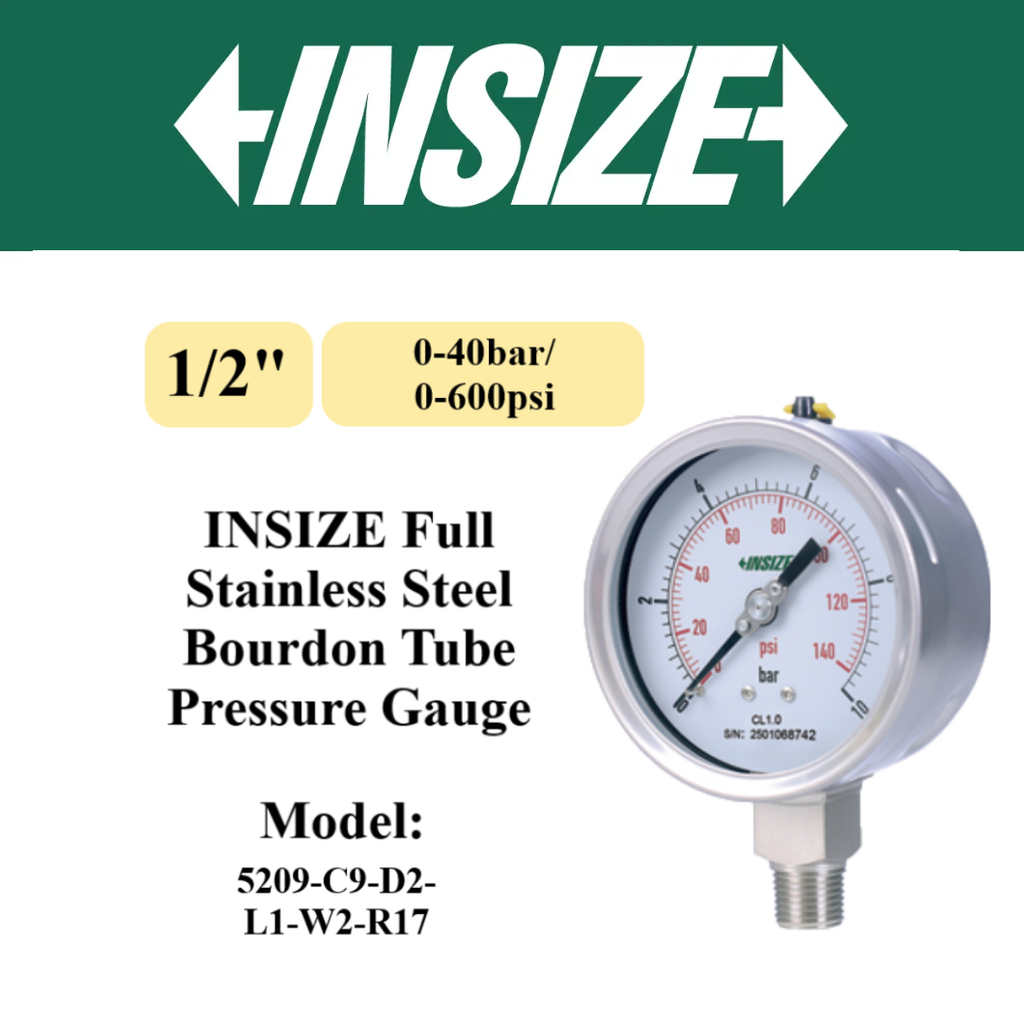

9. Model: 5209-C9-D2-L1-W2-R17

• Pressure Range: 0-40bar/ 0-600psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

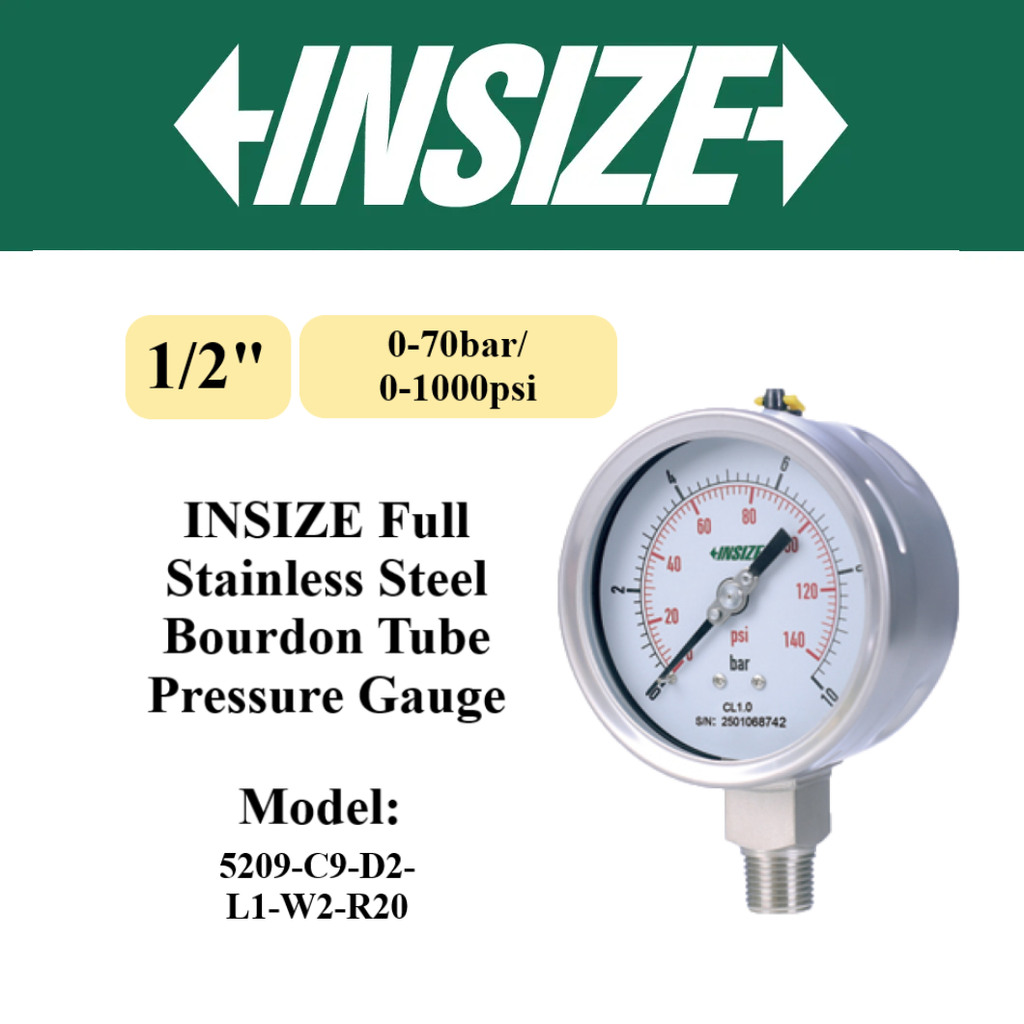

10. Model: 5209-C9-D2-L1-W2-R20

• Pressure Range: 0-70bar/0-1000psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)

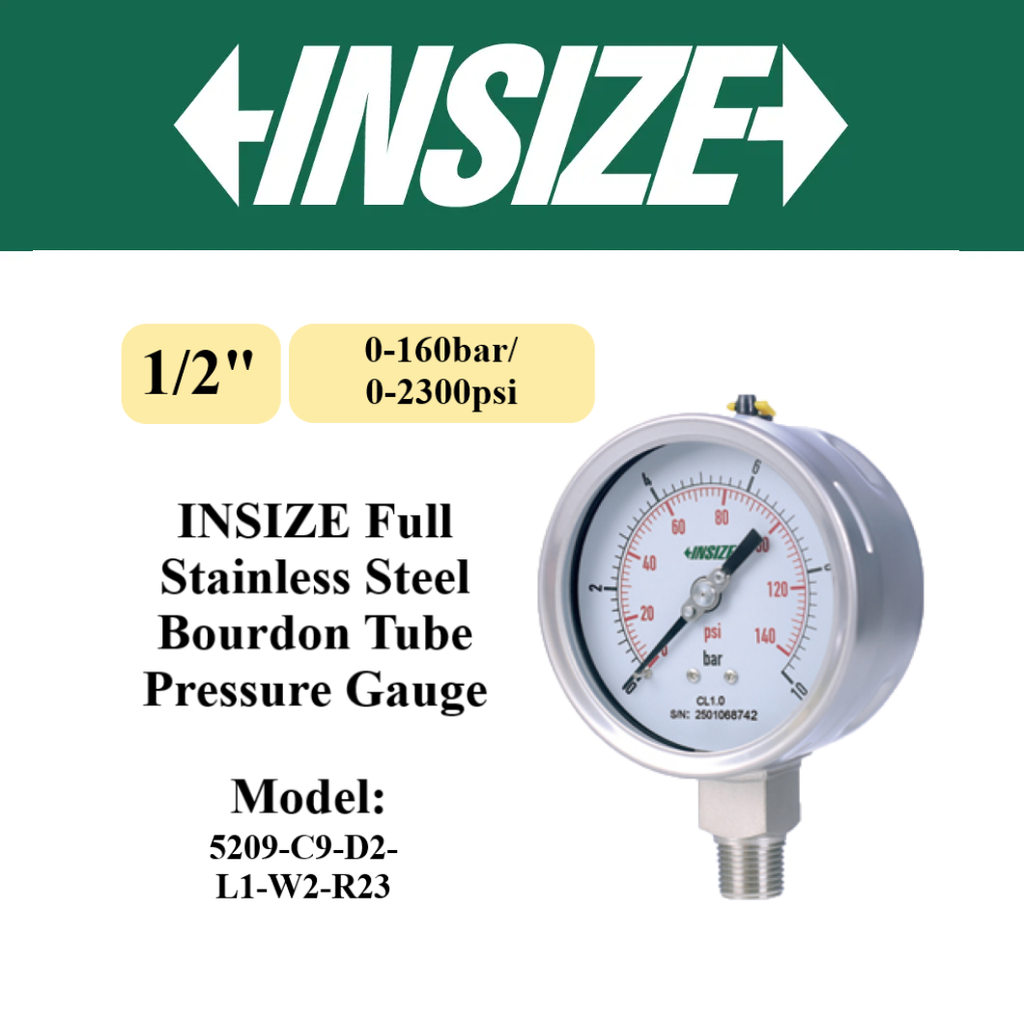

11. Model: 5209-C9-D2-L1-W2-R23

• Pressure Range: 0-160bar/ 0-2300psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)


12. Model: 5209-C9-D2-L1-W2-R25

• Pressure Range: 0-250bar/ 0-3500psi
• Connection: 1/2" NPT Bottom
• Dial Size: 4" / 100mm with Safety Glass (Filled with Silicone Oil)
