Product Description / Features:
PLASTIGAUGE is a precision clearance gauge for the measurement of clearance (separation) between fitted surfaces. It is particularly useful for measuring clearances in split bearings or in situations where a feeler gauge cannot be inserted.

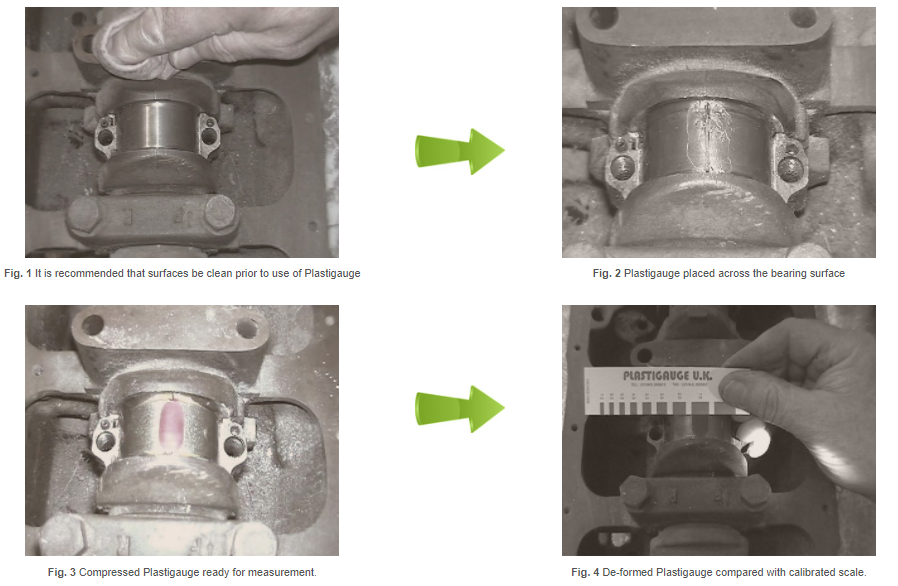

Perhaps the most widely used application of Plastigauge is in the measurement of clearance in plain automotive bearings.

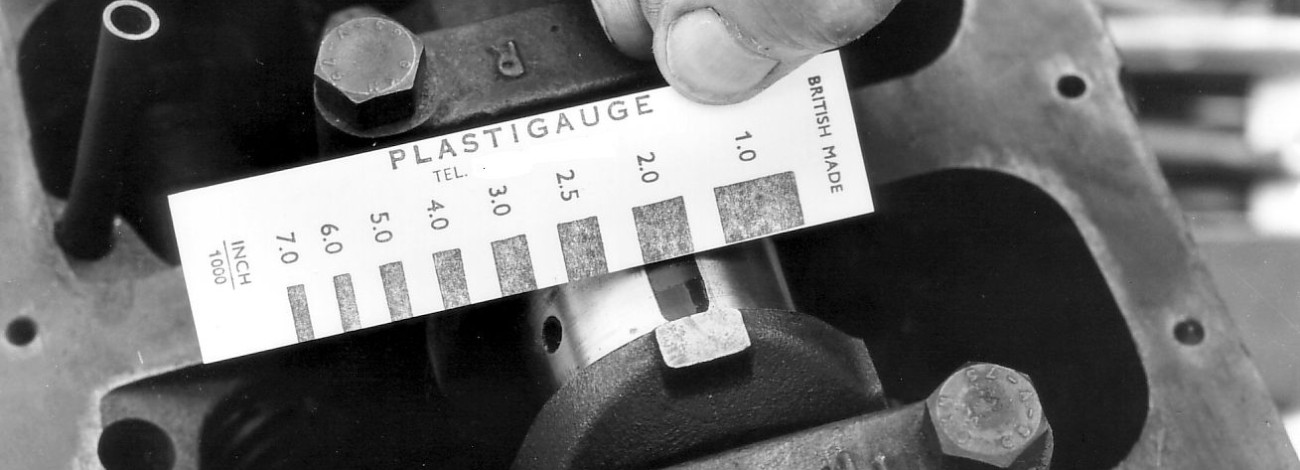

Measurement of clearance in big-end bearings can be achieved without dismantling the crankshaft.
We highly recommend the use of Silicone and Mineral greases.
PLASTIGAUGE may be used to detect high spots in cylinder heads, pipe flanges etc. It is useful in production, inspection and servicing.

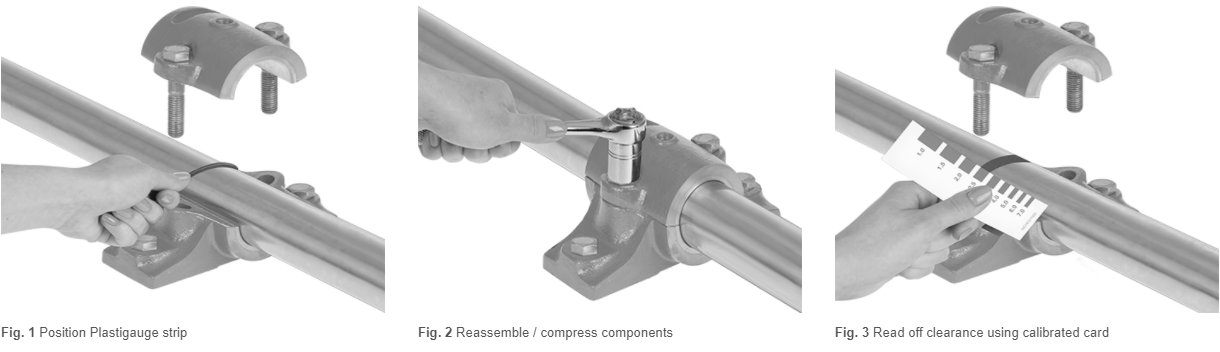

Plastigauge is also highly effective for measuring the clearance in large bearings which include:
- Marine drive shaft bearings
- Turbine housing bearings
- Pump and pressure system bearings
Shaft end-float lends itself to direct measurement by Plastigauge.
Flatness and clearance in pipe-flanges and cylinder heads are readily checked and measured with standard Plastigauge.
Plastigauge is particularly effective for the measurement of separation in moulding tools and wherever it is required to determine the separation between hidden surfaces.

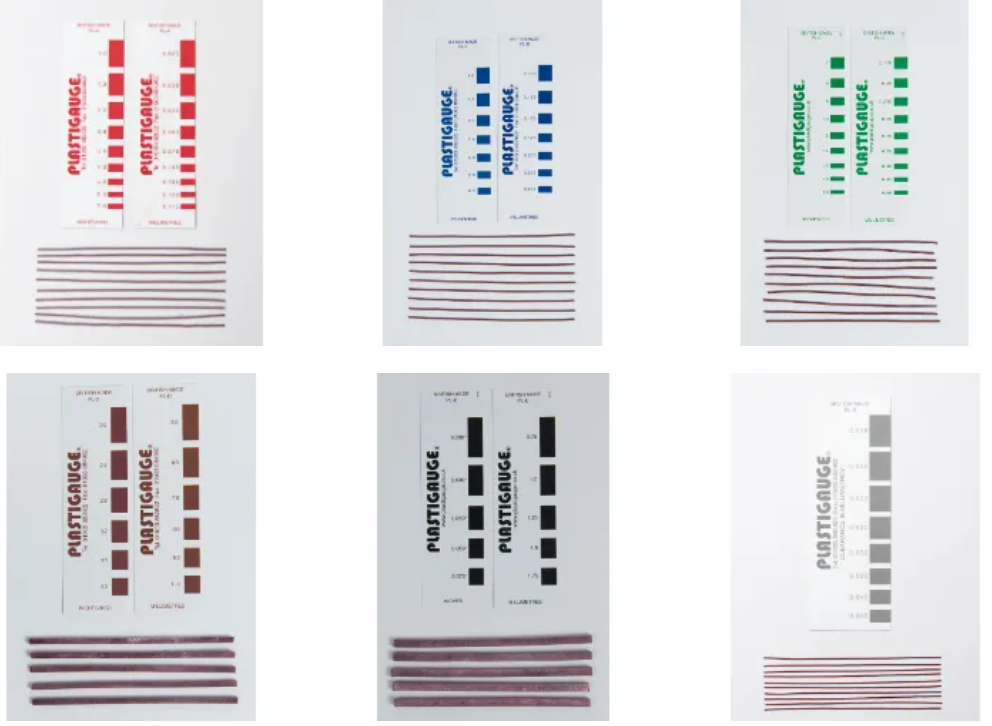

Specifications:
1. PL-A (Red): 0.001″ to 0.007″ (0.025mm - 0.175mm)
2. PL-B (Blue): 0.004″ to 0.010″ (0.100mm – 0.250mm)
3. PL-C (Green): 0.007″ to 0.020″ (0.175mm – 0.500mm)
4. PL-D (Brown): 0.020″ to 0.040″ (0.500mm – 1.00mm)
5. PL-E (Black): 0.030'' - 0.070'' (0.75mm - 1.75mm)
6. PL-X (White): 0.00007" - 0.0018" (0.018mm to 0.045mm)
Important Notice:
*PRICE LISTED & PRICE FOR OPTIONS (PLASTIGAUGE - RED, BLUE, GREEN, BROWN, BLACK, WHITE) WHATEVER CODE OR COLOUR YOU CHOOSE IS THE PRICE FOR SMALL PACK!! NOT FOR A BOX!!* Please take note!!
**REMIND**

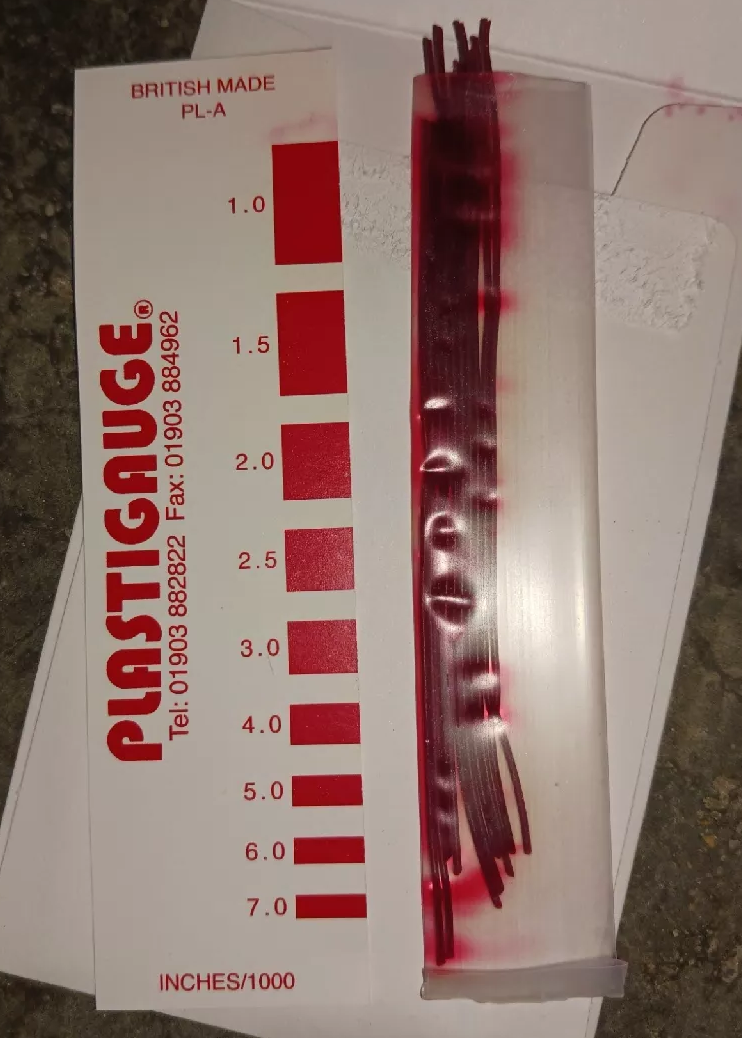

The good may stick together or look melt as picture below, that's may due to hot weather or expose sunlight during transport.
We're unable open to check since the packing is completely seal.
Cannot guaranty is perfect, but it is still useable.
